Designed for convenient and safe placement and use of spectrometers. For user convenience, the following design modifications have been implemented:
The table base is constructed from a collapsible frame made of 50x50 rectangular metal profile, ensuring high stability and even load distribution. All parts are coated with powder-applied chemically resistant paint.
-Service panel with mounted 220V sockets — 6 pcs (3.5 kW), 16A circuit breaker — 1 pc.
-Cabinet with 3 pull-out drawers
Suitable for laboratories with any tasks
The material of the work surface is tailored to the client's specific task:
-Ceramic tile
-Epoxy resin
-Solid plastic
-PVC-C
-Polypropylene
-Increased work surface width to 900 mm
-Reduced table height to 800 mm
|
Model |
SPT-150.90.80 |
SPT-180.90.80 |
|
|
Dimensions (LxWxH), mm |
1500х900х800 |
1800х900х800 |
|
|
Design |
Table height |
800 мм |
|
|
Work surface |
optional |
||
|
Base |
collapsible frame made of 50x50 rectangular metal profile |
||
|
Equipment |
service panel with mounted 220V sockets — 6 pcs (3.5 kW), 16A circuit breaker — 1 pc., cabinet with 3 pull-out drawers |
||

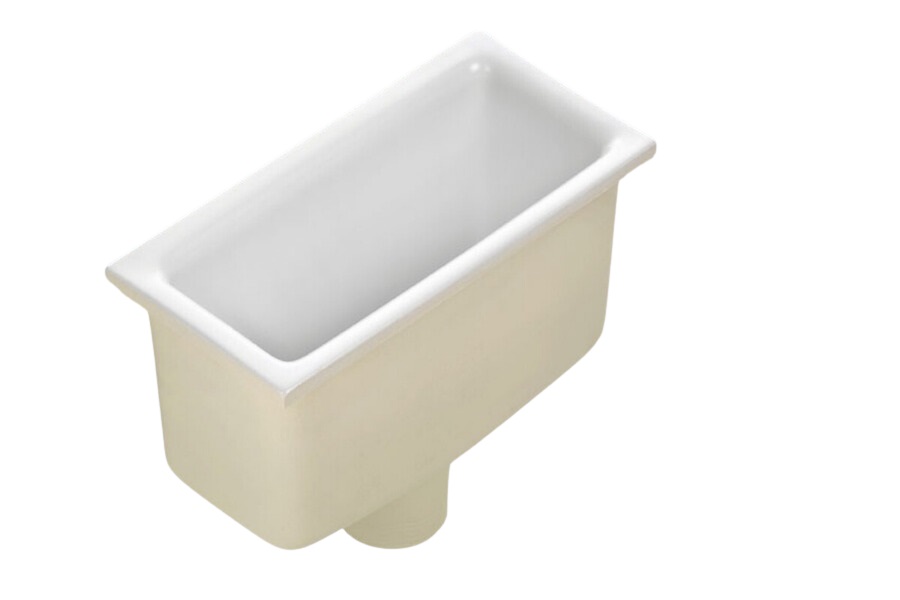

Available in various materials characterized by high moisture resistance.
|
Model
|
Length (mm) |
Width (mm) |
Depth (mm) |
Material |
|
1101 |
255 |
105 |
160 |
химически стойкая керамика |
|
SGS2-DI |
299 |
151 |
170 |
химически стойкая керамика |

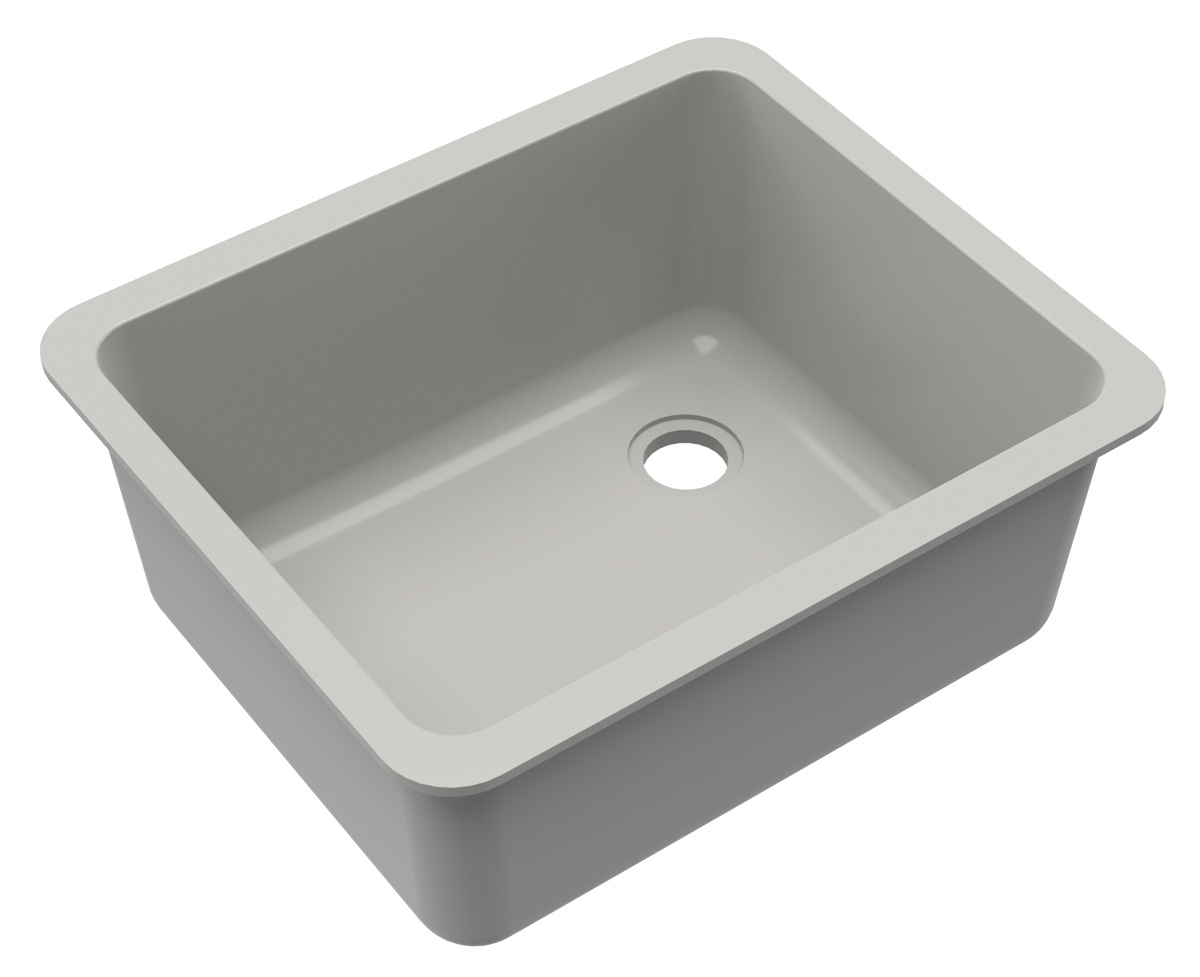

They can be manufactured from various materials, all characterized by high moisture resistance.
|
Model |
Length (mm) |
Width (mm) |
Depth (mm) |
Material |
|
WJH1357A |
520 |
420 |
250 |
Stainless Steel |
|
SM8-DI(X) |
450 |
365 |
280 |
Epoxy Copolymer |
|
SGL10-DI |
400 |
400 |
191 |
Epoxy Copolymer |
Полипропиленовый навесной сушильный стеллаж для посуды со специальными стаконодержателями.
A mobile, under-counter acid storage and dispensing cabinet made of polypropylene. Features 100 mm anti-static casters (two with brakes). Equipped with a door without a lock. The base consists of a frame made of a rectangular-section metal profile with 100 mm anti-static casters (two of which have brakes).

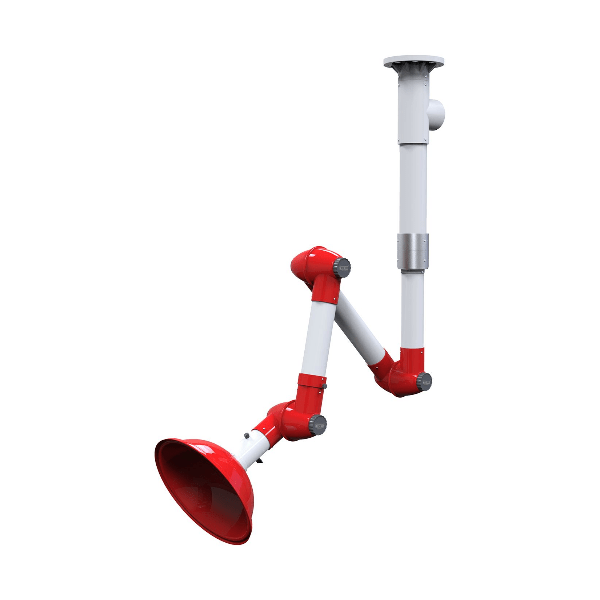

Extraction arms are a local exhaust system installed in laboratories to remove contaminants such as solvents or to eliminate pollutants released into the air during work. Extraction arms are suitable for applications requiring compact, flexible, and convenient structures for removing fumes, vapors, or dust. Articulating joints allow the exhaust system to be positioned directly above the work area.
