When working with acids such as nitric, sulfuric, hydrochloric, perchloric, and many other aggressive volatile and non-volatile acids, it provides the highest level of protection and resistance against highly corrosive reagents and chemicals (excluding hydrofluoric acid HF).
- Work Surface (Countertop): Made from a chemically and thermally resistant monolithic seamless ceramic slab with a glazed surface and equipped with anti-spill edges around the entire perimeter.
- Internal Work Zone: Dome-type, made from PVC-C sheet.
- Main Components: Manufactured from solid sheet metal, 2 mm thick. They are painted with chemically resistant paint. Prior to painting, all parts of the fume hood undergo degreasing and anti-corrosion treatment. Additionally, a zinc primer is applied before painting, ensuring long-term resistance to chemical abrasion and weather exposure.
provides audible and visual alarms in the event of low airflow or an unsafe damper position.
-The working space is enclosed by two dependent lift screens made of 5 mm thick glass.
-Can be fixed at any position (from 0 to 720 mm).
Work surface material: Chemically and thermally resistant monolithic seamless ceramic slab with a glazed surface and anti-spill edges around the entire perimeter.
High chemical resistance.
Three-level corrosion protection:
-The first layer is made of zinc primer.
-The second layer is powder-coated chemically resistant paint.
-The third layer is made of PVC-C sheet.
Heat resistance: Withstands exposure to open flame; class A1 (fire protection classification).
with internal polypropylene lining allows storing necessary reagents in direct proximity to the fume hood's work zone, while ensuring a high level of staff safety and material preservation.
- Технические характеристики:
Model
Hef-FC-120.86.230
Hef-FC-150.86.230
Hef-FC-180.86.230
Dimensions (WxDxH), mm
1200х860х2300
1500х860х2300
1800х860х2300
Construction
Work surface
Chemically and thermally resistant monolithic seamless ceramic slab
Internal work zone
Dome-type, made of PVC-C sheet
Rear and top panels
Solid PVC-C
Protective sash
Two dependent vertically sliding sashes made of impact-resistant laminated glass, 5 mm thick
Main structural parts
Solid sheet metal, 2 mm thick
Airflow controller
Built-in AFA500 system
is designed specifically for the mining and metallurgical industries and is ideally suited for work under high thermal and chemical loads.
- Work Surface (Countertop): Made from a chemically and thermally resistant monolithic seamless ceramic slab with a glazed surface and equipped with anti-spill edges around the entire perimeter. High heat resistance allows the surface to withstand exposure to open flame; it is absolutely non-combustible and heat-resistant (fire protection class A1).

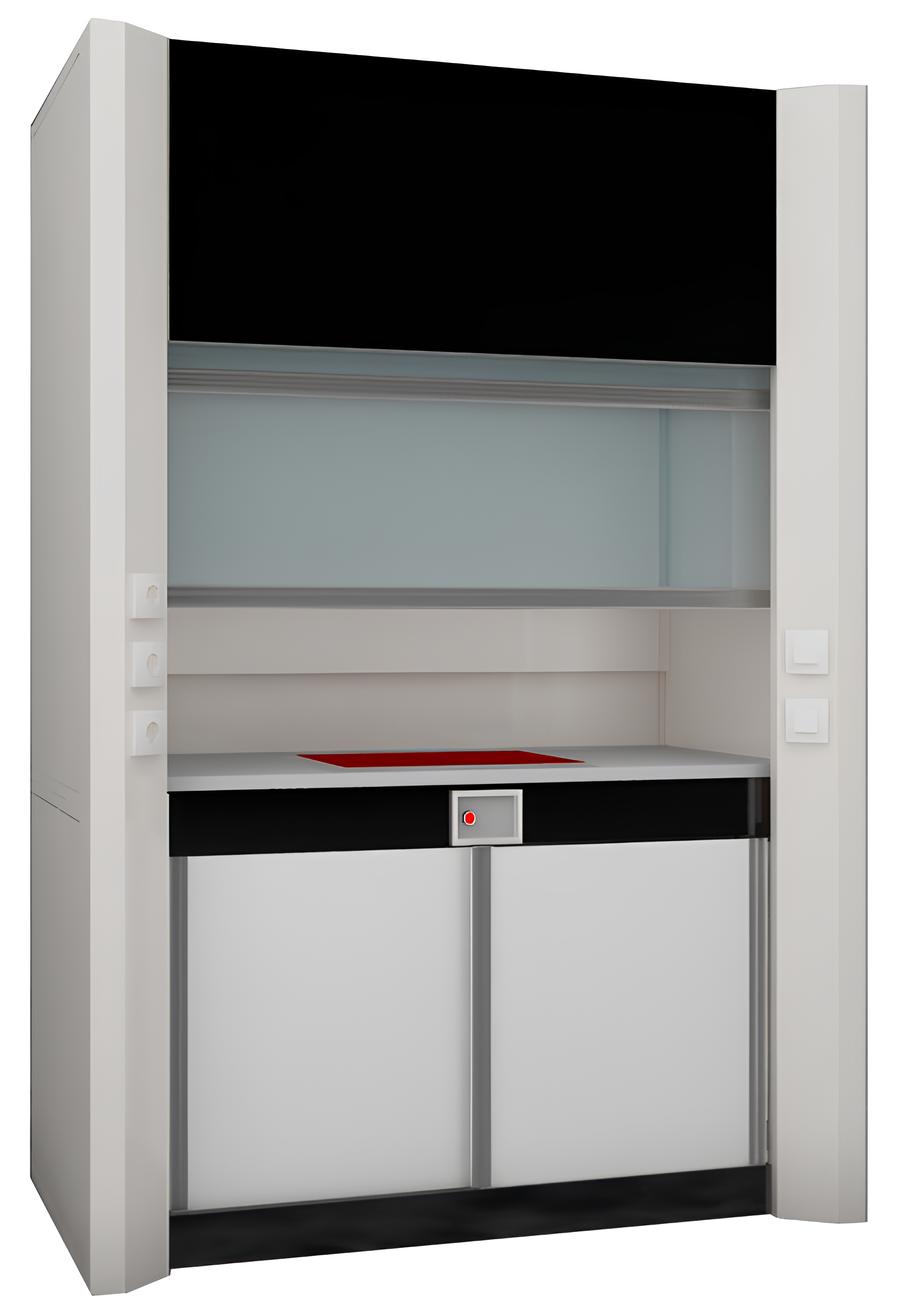

The Hephaestus fume hood can be equipped with one or two built-in heating modules. The heating modules, manufactured by Gestigkeit (Germany), feature an acid-resistant glass-ceramic surface.
provides audible and visual alarms in the event of low airflow or an unsafe damper position.
-The working space is enclosed by two dependent lift screens made of 5 mm thick glass.
-Can be fixed at any position (from 0 to 720 mm).
Work surface material: Chemically and thermally resistant monolithic seamless ceramic slab with a glazed surface and anti-spill edges around the entire perimeter.
High chemical resistance.
Three-level corrosion protection:
-The first layer is made of zinc primer.
-The second layer is powder-coated chemically resistant paint.
-The third layer is made of PVC-C sheet.
Heat resistance: Withstands exposure to open flame; class A1 (fire protection classification).
with internal polypropylene lining allows storing necessary reagents in direct proximity to the fume hood's work zone, while ensuring a high level of staff safety and material preservation.
-
- Dimensions: 430x430 mm
- Surface made of acid-resistant glass-ceramic
- Temperature range: from 50 to 350 °C
- Power: 1 x 4.4 kW
-
- Технические характеристики:
Model
Hef-FC-150.86.230-1H
Hef-FC-150.86.230-2H
Hef-FC-180.86.230-1H
Hef-FC-180.86.230-2H
Dimensions (WxDxH), mm
1500х860х2300
1800х860х2300
Construction
Work surface
Chemically and thermally resistant monolithic seamless ceramic slab
Rear and top panels
Acid-resistant glass-ceramic fiber panels
Protective sash
Two dependent vertically sliding sashes made of impact-resistant laminated glass, 5 mm thick
Main structural parts
Solid sheet metal, 2 mm thick
Heating modules, qty
1
2
1
2
Airflow controller
Built-in AFA500 system

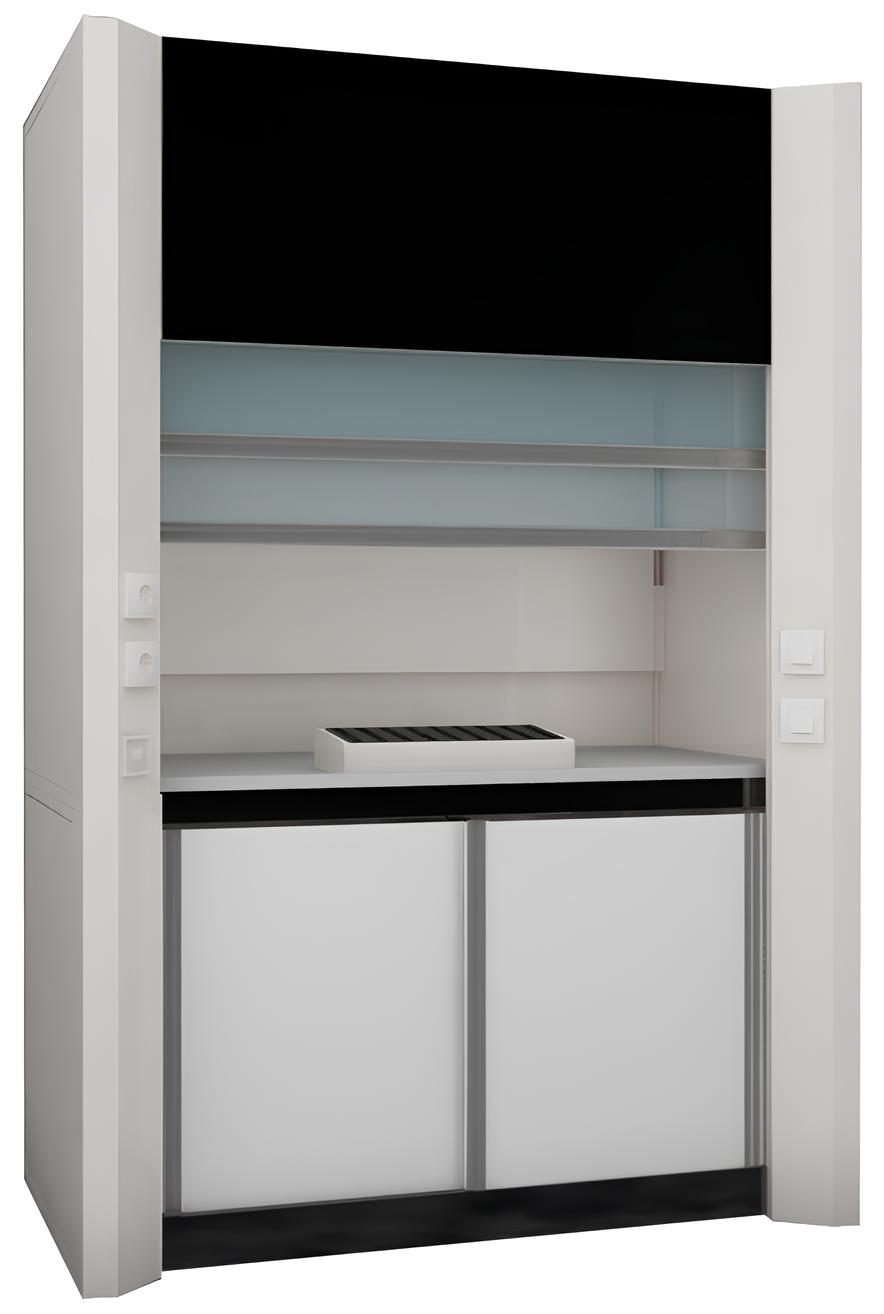

Special-Purpose Fume Hood Hephaestus with Built-in Multicube Heating Block
is designed specifically for the mining and metallurgical industries and is ideally suited for work under high thermal and chemical loads. The heating block allows for the sample decomposition process to be carried out directly inside the specialized fume hood, preventing toxic fumes from escaping the work zone.
- Work Surface (Countertop): Made from a chemically and thermally resistant monolithic seamless ceramic slab with a glazed surface and equipped with anti-spill edges around the entire perimeter. It provides excellent chemical resistance to almost any reagents, including concentrated acids and alkalis.
The integrated AFA500 system provides audible and visual alarms in the event of low airflow or an unsafe damper position.
The working space is enclosed by two dependent lift screens made of 5 mm thick glass.
Can be fixed at any position (from 0 to 720 mm).
Work surface material: Chemically and thermally resistant monolithic seamless ceramic slab with a glazed surface and anti-spill edges around the entire perimeter.
High chemical resistance.
Three-level corrosion protection:
-The first layer is made of zinc primer.
-The second layer is powder-coated chemically resistant paint.
-The third layer is made of PVC-C sheet.
Heat resistance: Withstands exposure to open flame; class A1 (fire protection classification).
with internal polypropylene lining allows storing necessary reagents in direct proximity to the fume hood's work zone, while ensuring a high level of staff safety and material preservation.
-
- for immersing vials / test tubes
-
- Технические характеристики:
Model
Hef-FC-150.86.230-1HB
Hef-FC-180.86.230-1HB
Dimensions (WxDxH), mm
1500х860х2300
1800х860х2300
Construction
Work surface
Chemically and thermally resistant monolithic seamless ceramic slab
Rear and top panels
Solid PVC-C
Protective sash
Two dependent vertically sliding sashes made of impact-resistant laminated glass, 5 mm thick
Main structural parts
Solid sheet metal, 2 mm thick
Heating block
1 heating block
Airflow controller
Built-in AFA500 system
Special-Purpose Fume Hood Hephaestus for Working with Hydrofluoric Acid
provides the highest level of protection and resistance against hydrofluoric acid (HF).
- Work Surface (Countertop): Made from a seamless polypropylene sheet with anti-spill edges around the entire perimeter. Polypropylene offers good chemical resistance to hydrofluoric acid, alkalis, and salts.
- Internal Work Zone: Dome-type. The internal surface of the chamber: the rear and top panels are made from a solid, seamless polypropylene sheet.
- Protective Sash: The work space is enclosed by two dependent vertically sliding sashes, made of impact-resistant laminated glass, 5 mm thick.
- Construction: The double-wall construction with an air gap of at least 40 mm effectively protects the fume hood and increases its service life.
provides audible and visual alarms in the event of low airflow or an unsafe damper position.
-The working space is enclosed by two dependent lift screens made of 5 mm thick glass.
-Can be fixed at any position (from 0 to 720 mm).
Work surface material: Chemically and thermally resistant monolithic seamless ceramic slab with a glazed surface and anti-spill edges around the entire perimeter.
High chemical resistance.
Three-level corrosion protection:
-The first layer is made of zinc primer.
-The second layer is powder-coated chemically resistant paint.
-The third layer is made of PVC-C sheet.
Heat resistance: Withstands exposure to open flame; class A1 (fire protection classification).
with internal polypropylene lining allows storing necessary reagents in direct proximity to the fume hood's work zone, while ensuring a high level of staff safety and material preservation.
- Технические характеристики:
Model
Hef-FC-120.86.230-PP
Hef-FC-150.86.230-PP
Hef-FC-180.86.230-PP
Dimensions (WxDxH), mm
1200х860х2300
1500х860х2300
1800х860х2300
Construction
Work surface
Seamless polypropylene sheet
Internal work zone
Dome-type, made of solid seamless polypropylene sheet
Rear and top panels
Made of solid seamless polypropylene sheet
Protective sash
Two dependent vertically sliding sashes made of impact-resistant laminated glass, 5 mm thick
Main structural parts
Solid sheet metal, 2 mm thick
Airflow controller
Built-in AFA500 system
