For conducting polymerase chain reaction

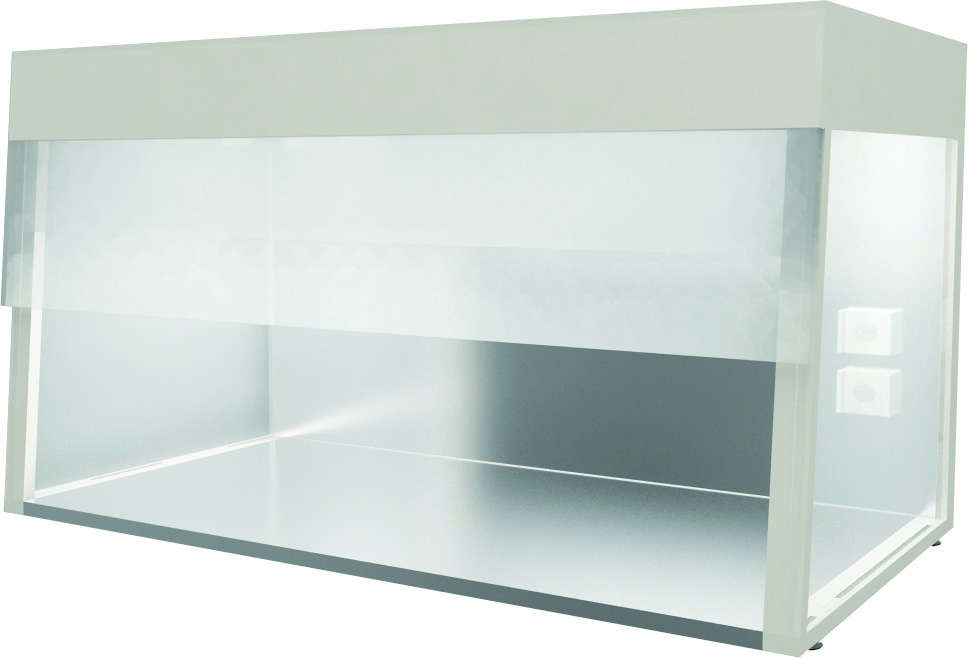

PCR Boxes are designed to create a germ-free atmosphere isolated from the external environment when conducting PCR analysis (polymerase chain reaction). Used for clean work with DNA samples. Ensures protection of the work area from the external environment. The operating principle is based on creating an antibacterial working environment inside the box through the exposure of the internal space and surfaces to intense UV irradiation. Used when equipping individual workstations in medical, pharmaceutical, and other institutions with high requirements for air purity in the work zone.









        • HEPA filter H14
        • UV lamp with controller and electronic timer

    • The work space is enclosed by a sash
    • Service utilities are located on the rear panel of the cabinet
    • Tabletop placement
    • Installed airflow purification system

          • Centrifugal fan
          • Emergency power shut-off switch
          • Dust- and moisture-proof sockets with IP54 cover
          • Dust- and moisture-proof fluorescent light fixture
          • Light switch
          • UV lamp with controller and electronic timer
          • HEPA filters H14
  • Model

    PCB-80.75.155

    PCB-120.75.155

    PCB-150.75.155

    PCB-180.75.155

    Dimensions (WxDxH), mm

    800х750х1555

    1200х750х1555

    1500х750х1555

    1800х750х1555

    Configuration

    Purification System

    HEPA filters H14 and UV lamp

    Protective Sash

    Made of impact-resistant armored glass, 5 mm thick; when the work compartment is fully open, the protective sash does not extend beyond the cabinet's dimensions

    Frame

    Collapsible frame made of rectangular metal profile 50x50 mm

    Purpose

    Protection of the work area from the external environment
