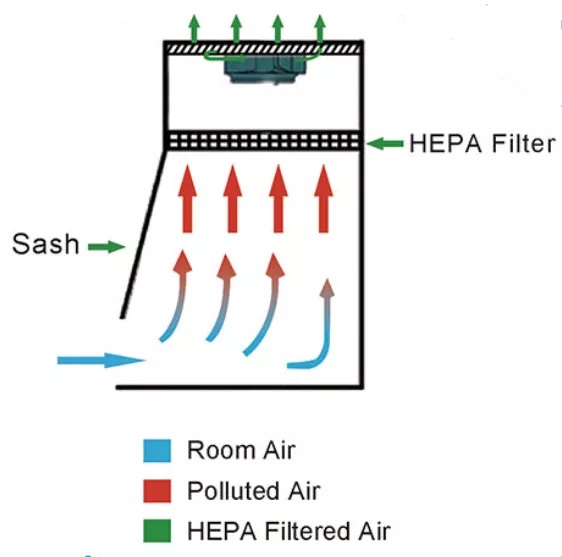

Class I Biological Safety Cabinets are designed for reliable protection of the operator and the environment when working with agents hazardous to operator health. This is achieved by removing contamination generated inside the cabinet through an inward airflow via the operator's access opening, followed by its effective filtration. Used when equipping individual workstations in medical, pharmaceutical, and other institutions with high requirements for air purity in the work zone. Biological safety cabinets are intended to protect the operator and the environment when working with agents hazardous to operator health.
Non-sterile work, no product protection from external contamination.
-
- HEPA filters H14 – 2 pcs- - UV lamp with controller and electronic timer
-
-
-
- The work space is enclosed by a lifting sash
- Service utilities are located on the rear panel of the cabinet
- Full functionality in rooms with low ceilings (less than 3 m)
- Installed airflow purification system
- Airflow direction ensures protection exclusively for the product
- Complies with European standard EN 12469 – 2000
-
-
-
-
-
- Centrifugal fan
- Airflow level regulator
- Emergency power shut-off switch
- Dust- and moisture-proof sockets with IP54 cover
- Dust- and moisture-proof fluorescent light fixture
- Light switch
- UV lamp with controller and electronic timer
- HEPA filters H14
-
-
-
- Технические характеристики:
Model
LC-1140.64.220-I
LC-1440.64.220-I
LC-1740.64.220-I
Dimensions (WxDxH), mm
1140х640х2200
1440х640х2200
1740х640х2200
Configuration
Purification System
HEPA filters H14 and UV lamp
Lifting Sash
Made of impact-resistant armored glass, 5 mm thick; when the work compartment is fully open, the protective sash does not extend beyond the cabinet's dimensions
Frame
Collapsible frame made of rectangular metal profile 50x50 mm
Purpose
Operator and environmental protection
Product, Operator, and Environmental Protection

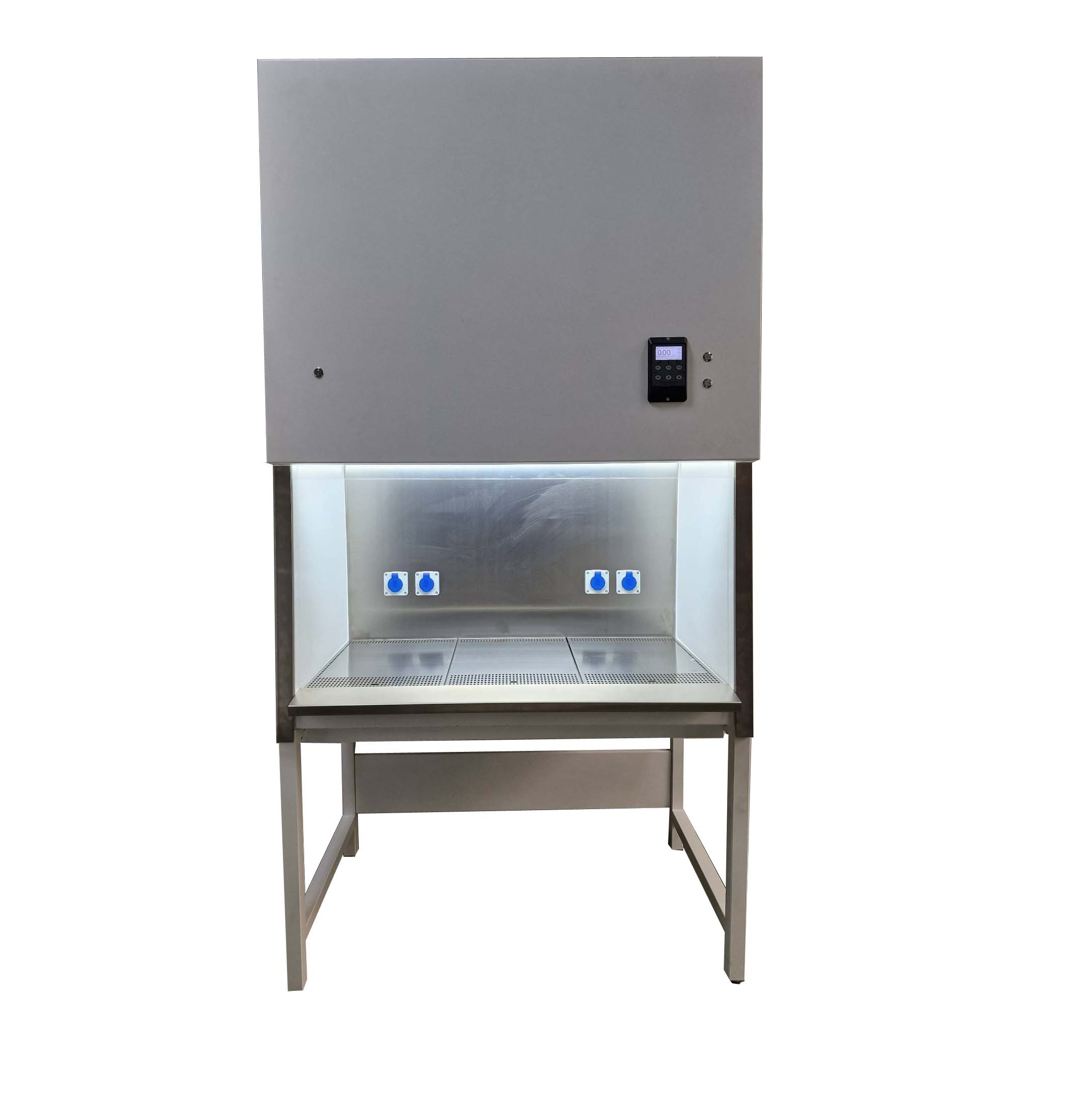

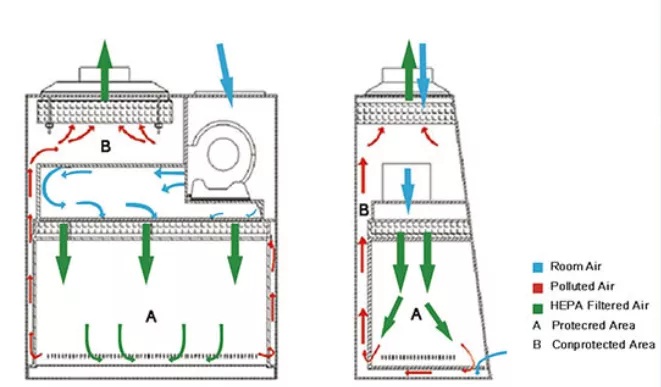

Class II Biological Safety Cabinets are designed for reliable protection of the product, operator, and environment through vertical laminar airflow of a uniform stream at a specified velocity, directed from top to bottom. The downward direction of the airflow ensures reliable protection against the ingress of undesirable particles into the atmosphere.
Provides protection for both products and the operator along with the environment. Used when equipping individual workstations in medical, pharmaceutical, and other institutions with high requirements for air purity in the work zone and protection against air contamination outside the work area, for example, when working with hazardous organisms of biological hazard groups III-IV.
-
-HEPA filters H14-
- -ULPA filters
- -UV lamp with controller and electronic timer
-
-
-
- The work space is enclosed by a lifting sash
- Service utilities are located on the rear panel of the cabinet
- Full functionality in rooms with low ceilings (less than 3 m)
- Installed airflow purification system
- Airflow direction ensures protection exclusively for the product
- Complies with European standard EN 12469 – 2000
-
-
-
-
-
- Centrifugal fan
- Airflow level regulator
- Emergency power shut-off switch
- Dust- and moisture-proof sockets with IP54 cover
- Dust- and moisture-proof fluorescent light fixture
- Light switch
- UV lamp with controller and electronic timer
- HEPA filters H14
-
-
-
- Технические характеристики:
Model
LC-1140.64.220-II
LC-1440.64.220-II
LC-1740.64.220-II
Dimensions (WxDxH), mm
1140х640х2200
1440х640х2200
1740х640х2200
Configuration
Purification System
HEPA filters H14, ULPA filters, and UV lamp
Lifting Sash
Made of impact-resistant armored glass, 5 mm thick; when the work compartment is fully open, the protective sash does not extend beyond the cabinet's dimensions
Frame
Collapsible frame made of rectangular metal profile 50x50 mm
Purpose
Product, operator, and environmental protection
